AC Switchgear: Essential for Safe Power Distribution in Industrial Settings

2025-08-07 10:31:21
AC Switchgear: Essential for Safe Power Distribution in Industrial Settings

Understanding AC Switchgear and Its Role in Industrial Power Systems

Core Function of AC Switchgear in Power Distribution

AC switchgear is essential for controlling, isolating, and protecting electrical circuits in industrial power systems. It interrupts fault currents, prevents overloads, and maintains stable voltage levels to safeguard critical equipment. For instance, during voltage spikes, switchgear quickly disconnects affected circuits, minimizing damage to motors and transformers.

Integration of Switchgear in Industrial Electrical Networks

In modern factories, switchgear divides power distribution into discrete zones, enabling targeted maintenance without halting entire production lines. Strategically positioned panels help reduce voltage drop across large facilities, ensuring consistent power quality for sensitive equipment like CNC machines and robotics.

Key Components: Circuit Breakers, Fuses, and Disconnect Switches

Reliable switchgear relies on three core components:

  • Circuit breakers automatically interrupt current during overloads or short circuits
  • Current-limiting fuses provide secondary protection by melting under excessive current
  • Disconnect switches allow safe manual isolation for maintenance, complying with OSHA safety standards

Case Study: Preventing System Failure in a Manufacturing Plant

An automotive assembly plant in the Midwest avoided $2.1 million in downtime when its medium-voltage switchgear detected early insulation degradation in a feeder cable. The system automatically rerouted power through redundant circuits and triggered maintenance alerts demonstrating how modern switchgear supports both preventive protection and operational continuity.

Enhancing Safety with Modern AC Switchgear Systems

Protecting Personnel and Equipment from Electrical Faults and Arc Flashes

Arc resistant AC switchgear makes workplaces safer by cutting down on dangerous energy exposure by as much as 85%, according to OSHA standards from last year. These systems use smart detection tech that can spot and contain electrical arcs in just 30 to 50 milliseconds, which is way faster than what humans can react to (around 200 ms). The equipment has special venting systems and pressure relief paths that push explosive forces away from workers, plus non-conductive shields stop people from touching live parts accidentally. Metal clad models come with sealed insulation too, and these have been shown to cut dust-related short circuits by about 92% in factories and plants, per IEEE guidelines from 2022.

Rising Adoption of Arc-Resistant Switchgear in High-Risk Industrial Facilities

Facilities in chemical processing and mining are now requiring arc resistant switchgear after seeing a drop of around 40% in electrical injuries at 12 sites where this equipment was installed according to NECA's 2023 report. The push comes from tighter rules under NFPA 70E standards. Looking ahead, Global Market Insights predicts the market for these specialized switches will expand at about 12.4% each year until 2028. What makes these systems so valuable? They handle internal arcs reaching over 35,000 degrees Fahrenheit without losing their structural strength something absolutely essential when working near flammable substances.

Implementing Safety Interlocks and Remote Racking for Safer Operations

Contemporary switchgear integrates mechanical and digital safeguards to minimize risk:

  • Key-controlled interlocks prevent access to compartments until circuits are de-energized and grounded
  • Motorized remote racking allows operators to engage or disengage breakers from over 10 meters away
  • Real-time insulation monitoring detects dielectric strength degradation before failure

A 2024 industrial safety study found that facilities using these features reduced maintenance-related arc flash exposure by 73% compared to conventional systems. Automated grounding verification now aligns with updated NFPA 70E (2023) requirements for establishing electrically safe work conditions.

Design and Engineering Standards for Reliable Switchgear Performance

Importance of Insulation Coordination in Medium-Voltage Switchgear

Getting the right insulation balance is key for switchgear to handle those sudden voltage spikes without compromising safety distances between energized components. Facilities that run on 5 to 15kV power systems have seen about 40 percent drop in insulation breakdowns since they started implementing layered protection approaches according to recent EPRI findings from last year. The trick involves pairing up surge protectors with circuit breakers rated for specific dielectric strengths, usually around 28 to 36kV for equipment designed for 15kV operation. Most engineers also follow the phase-to-ground spacing rules outlined in IEEE standard 3006.2 to keep everything running smoothly without unexpected failures.

Compliance with International Standards: IEC 62271 and IEEE C37

Global operations require switchgear compliant with both IEC 62271 (international) and IEEE C37 (North American) standards. Facilities meeting these benchmarks experience 62% fewer arc-related incidents than non-compliant installations. Key alignment points include:

Standard Voltage Range Key Requirement
IEC 62271-100 1kV - 52kV Short-circuit breaking capacity tests
IEEE C37.20.7 5kV - 38kV Internal arc classification criteria

Metal-Clad vs. Metal-Enclosed Switchgear: Choosing the Right Type for Industrial Use

Metal-clad switchgear, featuring removable breakers and grounded barriers, dominates heavy industries like steel production due to its 0.03-second fault clearance time. Metal-enclosed units offer a 40% smaller footprint, making them suitable for light manufacturing, but require 50% more annual maintenance. Selection factors include:

  • Safety: Metal-clad meets IEC 62271-200 arc containment requirements
  • Expandability: 87% of metal-clad systems support modular upgrades
  • Cost: Metal-enclosed provides a 35% lower initial investment

Ensuring Operational Reliability Through Proactive Maintenance

Unplanned switchgear failures can cost industrial operations up to $88,000 per hour in downtime. Proactive maintenance identifies vulnerabilities early, preventing catastrophic outages and extending equipment life.

Common Causes of Switchgear Failure in Industrial Environments

Over 65% of switchgear failures result from insulation degradation (Ponemon 2023), often accelerated by dust, moisture, and thermal cycling. Additional contributors include contact erosion from repeated arcing and mechanical wear in breaker operating mechanisms.

Predictive Maintenance Strategies: Thermal Imaging and Partial Discharge Testing

Infrared thermography detects hotspots up to 30% earlier than traditional inspections, while partial discharge testing identifies insulation weaknesses with 95% accuracy. Leading facilities now combine these methods with digital twin simulations to improve failure forecasting and optimize maintenance scheduling.

Case Study: Minimizing Downtime in a Steel Mill with Scheduled Servicing

A European steel mill reduced unplanned outages by 43% through quarterly maintenance that included lubricating moving parts, tightening busbar connections, and verifying dielectric strength. This program extended switchgear lifespan by 28% and maintained 99.97% power availability across three blast furnace operations.

Industrial-Specific Content

Future Trends: Digitalization and Smart Technologies in AC Switchgear

IoT-Enabled Digital Switchgear for Real-Time Monitoring and Diagnostics

Modern switchgear equipped with IoT sensors allows for constant tracking of things like temperature changes, how loads behave over time, and whether insulation is holding up properly. According to recent industry reports from Market Data Forecast in their 2024 analysis, around two thirds of plant managers prefer using predictive maintenance rather than sticking to fixed schedule checks. The real value comes when these smart systems catch problems early on, spotting issues like components running too hot or signs that insulation might be failing soon. This proactive approach cuts down unexpected shutdowns by somewhere between 40% and 60%, which makes a huge difference in operations. Top manufacturers are rolling out remote diagnostic tools that send alerts to engineering teams about possible arc flash dangers long before any actual fault occurs, giving them time to address risks before they become serious safety concerns.

Integration with Smart Grids for Enhanced Industrial Energy Management

Switchgear that works with smart grids helps buildings match their energy needs to what's actually available. Last year, a test run at a manufacturing plant in Texas cut energy bills by about 22% when they used automatic switches to turn off things like lighting and HVAC during those super expensive peak hours. Most new systems rely on standards such as IEC 61850 these days. These protocols make it possible for facilities to connect smoothly with solar panels, wind turbines, and other local power sources while working alongside microgrid controllers. The result? Facilities can adjust their energy usage in real time based on what makes sense economically and operationally.

Balancing Cost Efficiency with Advanced Protection in Modern Switchgear Design

Switchgear systems using gas insulation (GIS) equipped with automatic disconnect features take up about half the space of traditional air-insulated alternatives. The modular approach makes expansion much easier for facilities. Plants don't need to replace whole panels when they want to install things like arc flash detectors or better surge protection modules. From a budget standpoint, many operations find value in sticking with proven components such as vacuum interrupters. These parts tend to last longer and perform reliably over time. At the same time, equipment must still meet the latest standards outlined in IEEE C37.04-2022 regarding how well they handle fault currents during electrical failures.

Frequently Asked Questions

What is the primary function of AC switchgear in industrial settings?

AC switchgear is vital for controlling, isolating, and protecting electrical circuits in industrial power systems, preventing overloads and maintaining stable voltage levels.

How does arc-resistant switchgear enhance industrial safety?

Arc-resistant switchgear reduces dangerous energy exposure by using smart detection technology to spot and contain electrical arcs quickly, thus preventing injuries and equipment damage.

What are the benefits of integrating IoT sensors into switchgear?

IoT sensors enable real-time monitoring and diagnostics, allowing for early detection of issues and reducing unexpected shutdowns by predicting maintenance needs.

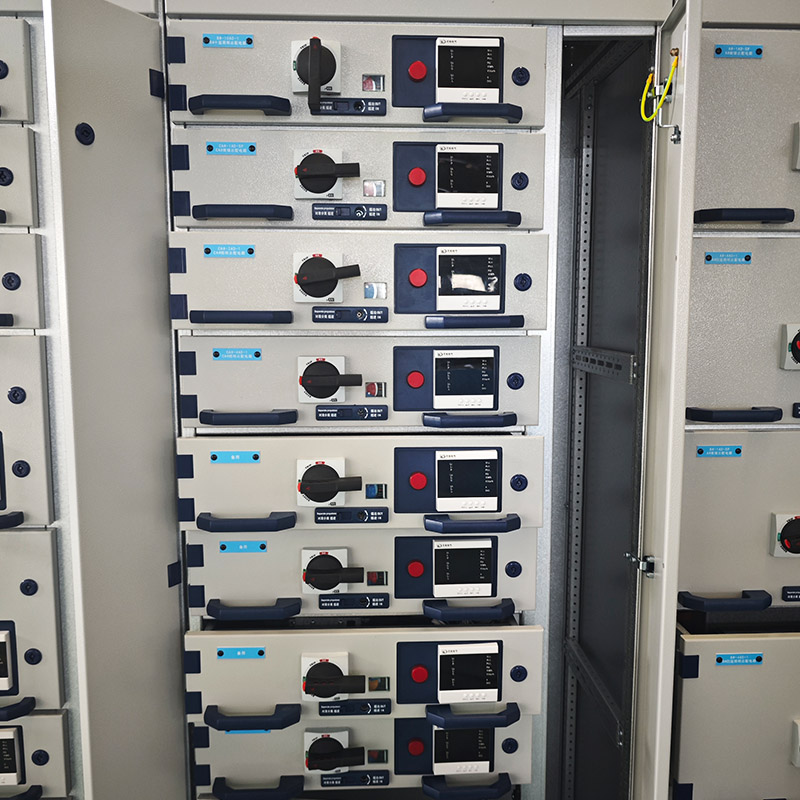

ac switchgear essential for safe power distribution in industrial settings-0
