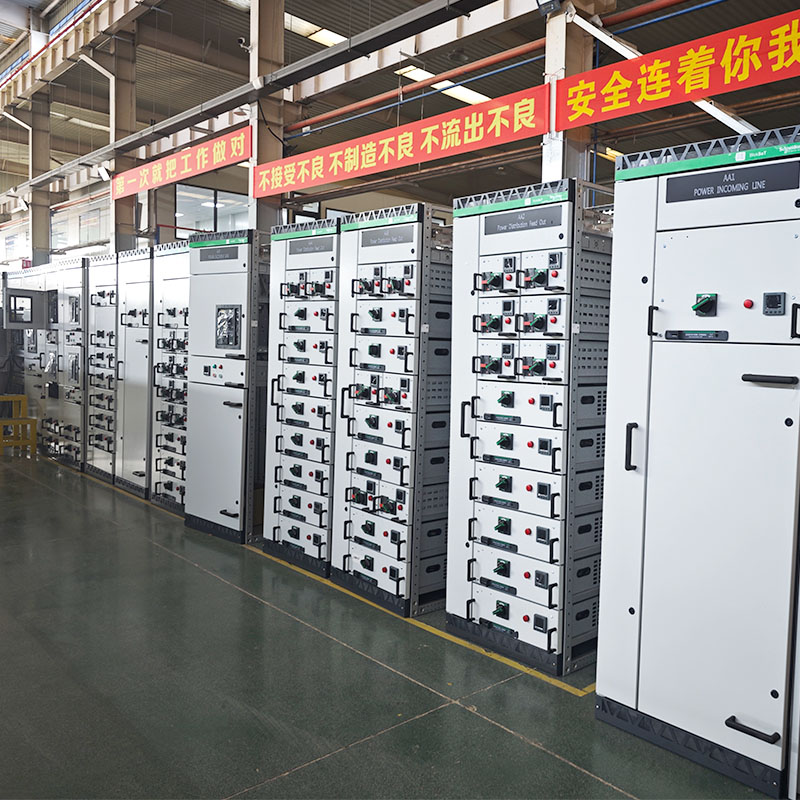

What scenarios are suitable for high-performance switchgear in power systems?

Mission-Critical Infrastructure Requiring Zero-Failure Switchgear

Data centers: Ensuring uninterrupted power with ultra-fast fault isolation and dynamic load resilience

Switchgear in data centers needs to clear faults within a fraction of a cycle, usually less than 30 milliseconds, to stop cascading failures when the power grid experiences problems. Modern microprocessor relays make this possible, helping maintain those legendary 99.999% uptime rates that server operators demand. When faults happen fast, quick isolation stops dangerous thermal issues from developing in UPS systems and backups, which is crucial since server farms deal with constantly changing loads all day long. Redundant bus setups let power keep flowing smoothly even during routine maintenance work. And those special arc resistant enclosures? They're designed to handle plasma temps that reach over 20,000 degrees Celsius. All these protections aren't just technical specs they matter financially too. According to research from Ponemon Institute last year, every unexpected outage costs a data center around $740k on average. That's why investing in reliable infrastructure isn't optional it's essential.

EV fast-charging hubs: Withstanding repetitive high-inrush currents and short-circuit stress on switchgear components

Fast charging stations for electric vehicles create some pretty special electrical challenges, especially those repetitive 500 amp surges that happen whenever multiple cars charge at once. Keeping these systems reliable requires heavy duty switchgear with vacuum interrupters that can handle well over 100 thousand operations without failing, which stops contacts from wearing down after all that repeated stress. Designers need to think about several critical components too: magnetic actuators that won't stick together even during massive 63kA fault conditions, trip mechanisms that protect against dangerous DC arcs, and enclosures rated IP55 so they stand up to road salt and whatever else Mother Nature throws their way. Thermal monitoring becomes absolutely necessary when dealing with those 350 kW super fast chargers running continuously at around 95% capacity most of the time, because nobody wants insulation breakdowns or safety issues down the road.

Healthcare facilities and water treatment plants: Maintaining safety-critical operation under humidity, corrosion, or strict uptime mandates

Switchgear used in critical care settings needs to keep working no matter what, especially when dealing with constant moisture, harsh chemicals, and strict regulations about system uptime. Gas sealed designs stop condensation from forming inside components even when humidity hits 95%, something that's really important in places like wastewater treatment plants where hydrogen sulfide corrosion is a big problem. The equipment has dual power controls so it keeps running during those annoying voltage drops we all experience sometimes. Enclosures rated NEMA 4X can handle the regular cleaning required in these facilities, and there's built-in ground fault protection that triggers before reaching dangerous levels (below 6 milliamps) to protect patients. All these specs together ensure the required 72 hour backup power for intensive care units and main water filtration systems. After all, any downtime here isn't just inconvenient it actually puts people's lives at risk.

High-Voltage Applications Where Switchgear Insulation and Arc Extinction Are Decisive

Voltage scalability: Matching switchgear dielectric design and recovery performance from 36kV to 550kV systems

Transmission systems need switchgear that can handle different voltage levels properly, ranging from those used in local distribution (around 36kV) all the way up to the massive interconnections operating at 550kV. For the lower voltages, we typically see composite insulating materials doing their job by preventing surface tracking issues. When dealing with those super high voltages though, engineers turn to specialized gas-vacuum hybrid chambers equipped with field grading electrodes to control the intense electrostatic forces involved. Getting thermal recovery right matters a lot too since it needs to match up with local autoreclosure settings. Most specs require dielectric strength to come back online within about 150 milliseconds otherwise there's a risk of restriking faults. These days, real time partial discharge monitoring has become pretty much standard equipment for any serious high voltage installation. This technology makes predictive maintenance possible even in hard to reach areas where unexpected power failures would create major headaches both operationally and financially speaking.

Extreme fault conditions: Sustaining integrity under >63 kA short-circuit currents and high transient recovery voltage (TRV)

Switchgear used in areas with high fault energy like steel mills, generator step up stations, and big industrial connections has to handle a mix of electromagnetic forces, heat buildup, and electrical stress all at once. When fault currents go above 63 kiloamperes, they create plasma arcs that can hit temperatures around 17,000 degrees Celsius hot enough to actually turn copper contacts into vapor. Modern systems fight these arcs using controlled magnetic fields that stretch them out through specially designed chambers. At the same time, nozzles shaped just right help push dielectric gases faster through the equipment, which puts out those dangerous plasmas within less than 8 milliseconds. There's another challenge too when the voltage coming back after a fault spikes past normal levels by as much as 2.5 times what it should be. That's where carefully adjusted damping circuits come in handy to stop any chance of sparks reigniting. For installations dealing with fault energies over 4,000 mega volt amps, these features aren't optional anymore because if something fails here, entire power grids might collapse.

Space- and Environment-Constrained Sites Optimized for GIS and Hybrid Switchgear

Urban substations, offshore platforms, and indoor industrial facilities: Why gas-insulated switchgear (GIS) delivers compactness, reliability, and reduced footprint

Gas insulated switchgear really shines where there just isn't enough room or when conditions get tough. Think dense city centers, offshore oil rigs, or inside factories where space matters most. These systems work by putting all those live parts into special gas filled chambers under pressure, either traditional SF6 or newer alternatives. This setup cuts down on space needs by around 80% compared to regular air insulated gear. The whole thing is sealed tight so it stands up against saltwater corrosion, dampness, dirt buildup, and chemical exposure. That makes a big difference for installations near coasts, out at sea, or anywhere chemicals are part of daily operations. Since nothing gets dirty or worn down from outside factors, these systems need far less maintenance over time. When companies want to upgrade old equipment or need something that can grow with their needs, they often go with hybrid solutions. These mix the best parts of GIS technology with some standard air insulated components. The result? Smaller physical footprint, better performance across the board, and savings throughout the entire lifespan of the equipment while still meeting all safety standards.

Renewable Energy Integration Demanding Adaptive and Robust Switchgear Protection

Solar and wind farm interconnections: Mitigating DC arcing risks and asymmetrical AC fault interruption challenges

When we bring together solar panels and wind turbines in our energy mix, we run into some serious protection issues. For starters, photovoltaic systems create those pesky DC arcs when disconnected, which means we need special containment measures and fast ways to cut off DC current. Wind turbines throw another curveball with their oddball AC faults and weird current waveforms that just don't play nice with regular circuit breakers. Adaptive switchgear helps tackle these problems by combining data from multiple sensors and running smart algorithms to spot trouble spots before they become disasters. These systems can isolate faults in just two AC cycles, which makes a huge difference. As more renewables get added to the grid, everything gets more unpredictable. Switchgear needs to deal with all sorts of different fault sizes, react quickly when generation changes suddenly, and keep things stable during those brief but intense electrical disturbances. All this has to happen while maintaining smooth power flow across grids that are becoming more spread out and less centralized than ever before.

FAQ

Why is switchgear critical for data centers?

Switchgear is vital for data centers to quickly isolate faults, preventing cascading failures and ensuring the continuity of power, crucial for maintaining uptime.

What unique challenges do EV fast-charging hubs face?

EV fast-charging hubs face challenges like handling high-inrush currents and providing durable switchgear components to withstand repeated electrical stress.

How does gas-insulated switchgear benefit space-constrained environments?

Gas-insulated switchgear offers compactness and reliability in constrained environments, requiring less maintenance and enduring tough conditions like saltwater exposure.

What are the protection issues faced during renewable energy integration?

Renewable energy integration faces protection issues like DC arcing and asymmetrical AC fault interruption, necessitating adaptive switchgear solutions.
