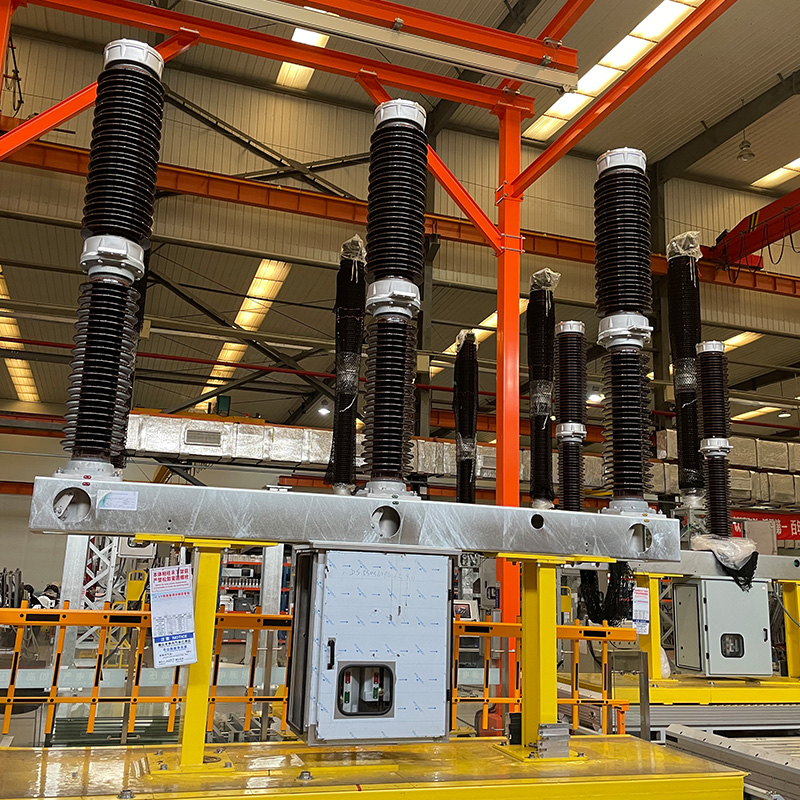

How to maintain the insulation performance of SF6 circuit breakers?

Understanding SF6 Gas Properties Critical to Insulation Integrity

Dielectric Strength and Pressure–Temperature Dependence of SF6

Sulfur hexafluoride (SF6) has remarkable insulating properties, about 2.5 to 3 times better than regular air, because of how its molecules grab electrons. The effectiveness of this insulation relies heavily on the gas density, which changes based on both pressure levels and ambient temperatures. As pressure goes up, so does the dielectric strength in a straight line fashion. But watch out when temps drop below minus 5 degrees Celsius - at that point SF6 starts turning into liquid form and the density plummets suddenly. Even losing just 10% of the gas density through leaks, cold weather shrinkage, or improper filling can cut down the breakdown voltage by around 15 to 20 percent according to IEEE research from 2023. Keeping the working pressure between 4 and 6 bars remains critical for preventing those annoying partial discharges that happen during sudden voltage spikes.

How Gas Purity and Moisture Content Directly Affect Breakdown Voltage

The presence of impurities really takes a toll on SF6 insulation properties. When moisture levels go over 200 parts per million, it combines with materials broken down during arcs to create hydrofluoric acid. This leads to faster contact corrosion and can drop breakdown voltage anywhere between 30 to 40 percent. Air contamination also matters quite a bit. If oxygen and nitrogen content exceeds half a percent, dielectric strength drops around 15%. These gases bring in particles that make electrons multiply rapidly, which we all know isn't good news. For systems to last the distance, regular checks of gas purity through gas chromatography are necessary. Moisture should stay below 20 ppm thanks to those built-in desiccant traps. Industry data shows every 50 ppm increase in humidity raises failure chances by 18% according to CIGRE research from 2022. That's why controlling moisture isn't optional at all. It affects not only how well things insulate but also how long components actually last before needing replacement.

Ensuring SF6 Gas Density and Seal Integrity

Keeping the right gas density levels in SF6 circuit breakers matters a lot for safety reasons. The dielectric strength really takes a hit when there's any kind of density loss, and we're talking serious problems even if it drops just 10%. That's why most places now have real time monitoring as part of their routine. These modern systems come equipped with sensors that adjust for temperature changes and run algorithms tailored specifically to each location's environment. What they do basically is track how pressure relates to temperature over time, spot unusual patterns in gas leakage rates, and account for how outside temperatures affect what's happening inside the breaker. The whole system updates roughly every 15 seconds or so. If the gas density gets down to 90% of what it should be, alarm bells go off right away and special valves kick in automatically to seal off whatever section is having issues. Plants that installed these kinds of monitoring solutions typically see around 72% fewer unexpected shutdowns compared to older facilities still doing quarterly manual inspections by hand.

Real-Time Density Monitoring to Prevent Insulation Failure

Density monitoring systems typically use multiple sensors working together, with accuracy levels around plus or minus half a percent throughout their entire range of operation. What makes these setups valuable goes beyond just recording numbers. They actually look at past pressure patterns and can spot possible leaks several weeks ahead of time. This early warning lets maintenance crews get ahead of problems before any damage occurs to the insulation layers. The system triggers alerts whenever readings drift more than 2 percentage points away from normal levels. This gives plant operators enough lead time to investigate issues without having to shut down operations or risk destabilizing the whole system.

Advanced Leak Detection and Root-Cause Analysis for Sealed Enclosures

Modern leak detection combines ultrasonic scanning with helium tracer gas methods, reliably identifying leaks as small as 10 μmbar·L/sec during routine maintenance. Root-cause analysis follows a rigorous, three-phase methodology:

This approach shifts maintenance from reactive patching to engineered resilience—extending equipment lifespan by 8–12 years and eliminating 95% of repeat leaks through solutions like fluoropolymer-coated gaskets and vibration-resistant weld designs.

Moisture Control Strategies for Long-Term SF6 Circuit Breaker Reliability

Seal and Gasket Degradation Mechanisms and Their Impact on Humidity Ingress

Seals and gaskets degrade through aging, thermal cycling, and chemical exposure—creating micro-pathways for atmospheric moisture to infiltrate sealed SF6 compartments. Since moisture above 200 ppm reduces dielectric strength by up to 30% and promotes conductive byproduct formation during arcing, controlling ingress is foundational to insulation integrity. Primary degradation modes include:

• Compression set failure: Elastomers permanently deform under sustained load, losing sealing force
• Ozone cracking: Ambient ozone attacks polymer chains in rubber components
• Thermal embrittlement: Repeated heating/cooling cycles reduce elasticity and induce microfractures
• Chemical swelling: Exposure to oils, solvents, or cleaning agents alters dimensions and compromises fit

Industry data attributes 62% of SF6 leakage incidents to seal failure—and shows a consistent 15% reduction in breakdown voltage per 100 ppm moisture increase. Proactive replacement of aging seals during scheduled maintenance mitigates this dominant failure pathway, preserving insulation stability and supporting decades of reliable service.

FAQ

What is the effect of low temperatures on SF6 gas?

Low temperatures can cause SF6 to liquefy, significantly reducing its density and dielectric strength, which compromises insulation effectiveness.

Why is it crucial to monitor SF6 gas density in circuit breakers?

Monitoring is essential because a drop in SF6 gas density can lead to insulation failure. Real-time monitoring systems help in preventing such occurrences by detecting leaks early.

How does moisture affect SF6 insulation properties?

High moisture levels lead to the formation of hydrofluoric acid, which corrodes contacts and significantly reduces breakdown voltage.

What are the main causes of SF6 leakage?

Major causes include seal and gasket degradation due to aging, thermal cycling, chemical exposure, and improper installation, leading to atmospheric moisture ingress.
