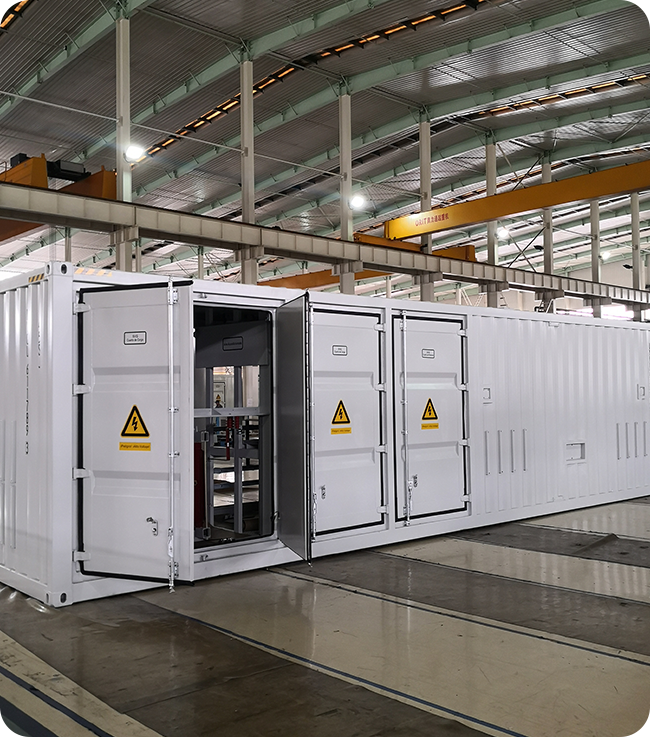

How to select SVG equipment matching the capacity of power plants?

Assessing Power Plant Reactive Power Needs for Accurate SVG Sizing

Linking Load Profile, Grid Strength, and Dynamic VAR Demand

Getting the right size for an SVG system depends mainly on three things working together: how the load changes over time, the strength of the electrical grid (measured by something called SCR), and what the system needs for reactive power at any given moment. Take industrial sites where loads jump around a lot, like steel mills running those big arc furnaces. These places often see reactive power bouncing up and down more than 40% every few seconds. That means the SVG has to react super fast, usually within about 20 milliseconds, just to keep voltages stable. When grids aren't so strong (SCR below 3), all these sudden changes cause bigger voltage problems. Facilities in these situations need SVG systems that are roughly 25 to 30% larger than what would work in stronger grids. A recent study from IEEE back in 2023 showed something interesting too. They found that when people ignore harmonic distortions above 8% THD, they tend to undersize their SVGs by about 18%. And guess what happens? Capacitor banks fail sooner when there's a voltage drop.

Case Study: Dynamic SVG Sizing at a 200-MW Wind Farm Using 15-Minute Forecasting

A renewable energy operator optimized SVG deployment using 15-minute wind output forecasting correlated with historical grid congestion data. This shifted SVG sizing from a conventional 35% safety margin to a targeted 12% reserve. The solution comprised:

• Modular SVG units totaling 48 MVAR capacity
• Real-time SCADA integration compliant with IEC 61400-25
• Adaptive control algorithms that dynamically adjust reactive compensation based on forecasted ramp rates

The result was a 67% reduction in voltage deviation incidents and 92% utilization of installed SVG capacity—demonstrating how predictive analytics align dynamic VAR support precisely with actual plant behavior.

Defining Technical Specifications Based on Grid Compliance and System Constraints

Harmonic Limits, Voltage Fluctuation Tolerance (IEC 61000-2-2), and SCR Requirements

The technical specs for SVG systems need to align with actual grid regulations and specific electrical requirements at each installation site. Keeping harmonic distortion under 5% total harmonic distortion at the PCC point helps prevent problems like transformer overheating and incorrect operation of protective relays. According to standard IEC 61000-2-2, voltage can fluctuate by plus or minus 10% during temporary events such as when motors start up or faults get cleared, which stops flickering lights and keeps the whole system stable. The short circuit ratio plays a big role in determining SVG size too. When SCR values fall below 3, installations typically need around 20 to 30 percent more reactive power capacity just to maintain proper voltage levels during unexpected disruptions. Failing to meet these standards could lead to forced disconnection from the grid or facing fines from regulators, so getting these parameters right through thorough modeling work is absolutely essential before deploying any SVG solution.

Key Compliance Requirements

Ensuring Seamless SVG Integration with Existing Substation Infrastructure

Resolving Legacy Relay Incompatibility Through IEC 61850-9-2 GOOSE Interfacing

Old school protection relays tend to get in the way when trying to integrate SVG systems because they use their own special communication protocols. The solution comes in the form of IEC 61850-9-2 GOOSE messaging which allows for really fast data transfer between these older relays and new SVG controllers. We're talking about sub 4 millisecond response times over regular Ethernet connections, and best part is no need to replace any hardware. For those working in high voltage environments, optical fiber connections solve the problem of electromagnetic interference that can mess up signals. And according to recent industry standards from 2023, going with standardized GOOSE implementations cuts down on setup time somewhere around half compared to traditional methods. What makes this approach so appealing is that it lets companies keep using their existing relay infrastructure while still getting all the benefits of quick, synchronized reactive power management across the system.

Benefits of Modular, Scalable SVG Units for Phased Deployment

Modular SVG architectures support staged deployment aligned with plant growth and load evolution. Advantages include:

• Capital optimization: Begin with 10–20 MVAR units and scale capacity incrementally as generation expands
• Operational continuity: Hot-swappable modules permit maintenance without full system shutdown
• Technology agility: Later-phase upgrades integrate new control firmware or power electronics without redesign
• Footprint efficiency: Compact designs occupy 40% less space than conventional SVGs (2024 Grid Solutions Report)

Phased deployment ensures reactive compensation matches actual load profiles—avoiding costly overinvestment while preserving voltage stability throughout expansion. Scalable configurations also enable N+1 redundancy for mission-critical substations.

FAQ

What is an SVG system?
An SVG system, or Static Var Generator, is a device used to improve voltage stability by rapidly supplying or absorbing reactive power as needed.

Why is SCR important for SVG sizing?
The Short Circuit Ratio (SCR) indicates grid strength. Lower SCR values require larger SVG systems due to more significant voltage fluctuations.

How does predictive analytics improve SVG efficiency?
Predictive analytics align SVG capacity according to forecasted output and actual system behavior, leading to optimized performance and reduced voltage deviation.
